| 원래 장소: | 중국 |
| 브랜드 이름: | Jack-Aiva |
| 인증: | CE , SGS |
| 모델 번호: | FD-3V |
| 최소 주문 수량: | 1세트 |
|---|---|
| 가격: | 10000USD/SET |
| 배달 시간: | 근무일 기준 60일 |
| 지불 조건: | 티/티 |
High-efficiency HVAC damper blade roll forming machines for VCD damper frames and aerofoil blades.
Fully automatic PLC control, high precision, customizable sizes. Ideal for fire damper and air duct manufacturing.
Our HVAC damper roll forming machines are specially designed for the production of VCD damper frames and aerofoil blades (fire damper blades) used in ventilation and air conditioning systems.
These machines are widely applied in HVAC duct manufacturing, fire protection systems, air volume control dampers, and industrial ventilation projects.
With decades of experience in roll forming technology, we provide fully automatic, high-precision, and customizable production lines to meet the requirements of global customers, including Europe, North America, and the Middle East.
Machine Components
De-coiling → Pre-cutting → Roll forming → Cutting → Run-out table

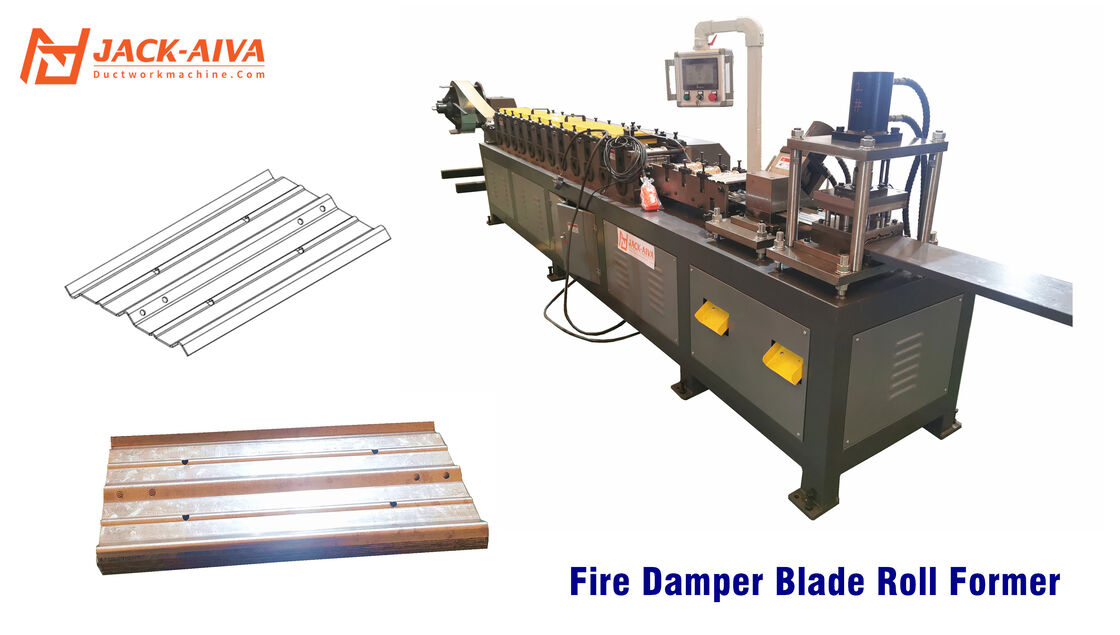

Main parameters- Fire Damper Blade Machine
| Item | Content |
| Profile | Fire Damper Aerofoil Blade |
| Suitable Material | GI Steel, stainless steel； Thickness 1.2mm |
| Coil width | According to profile drawing |
| MAX Coil weight (KG) | 3000kg |
| Line speed | 0-10m/min |
| Forming roller | Cr12MoV,After treatment, hardness HRC58-62; 14 stations |

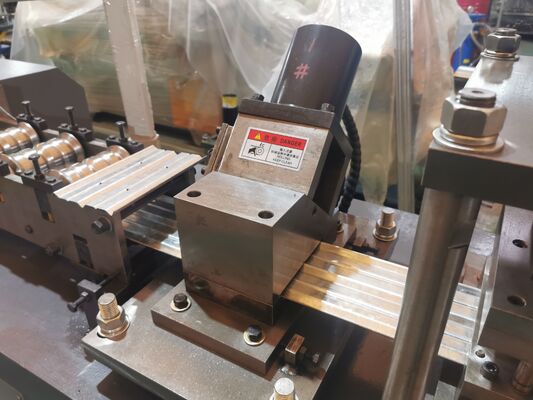

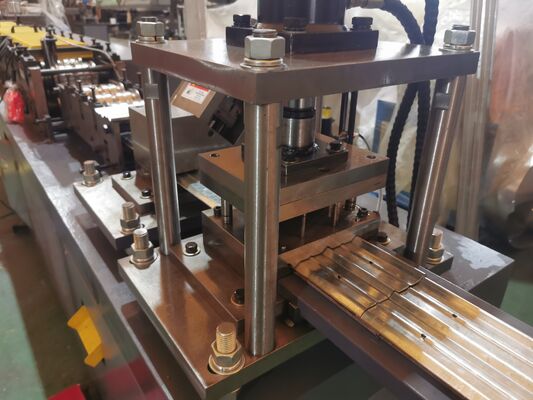

| Cutting model | Hydraulic control cutter |
| Power | 4KW+3KW |
| Weight | Around 2T |
| Line Dimension (mm) | 9500*1100*1200 |
| Electrical control system | PLC and touch screen control, frequency converter speed regulation. |
Our HVAC damper machines are widely used in:
We provide fully customized solutions based on:
TAG:VCD Damper Frame Roll Forming Machine, Aerofoil Blade Fastener Machine, Fire Damper Blade Machine, HVAC Damper Production Line, Air Duct Damper Machine
